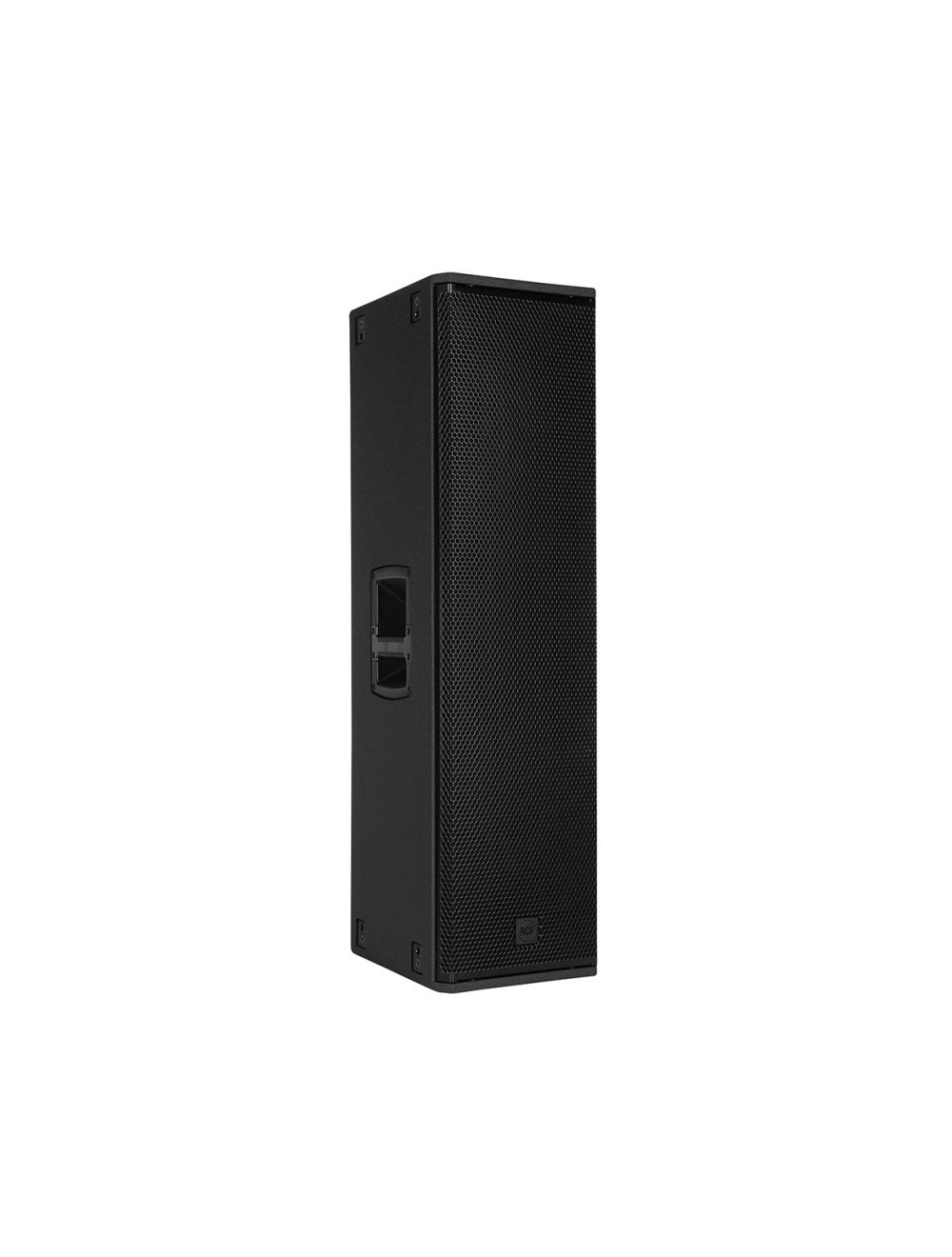

RCF NXL44-A MK2 Powered Column Speaker

Description

• Up to 135 dB Sound Pressure Level
• 2100W Class-D Amplifier
• 100° x 30° Constant Directivity Coverage Angle
• 3″ Titanium Neodymium Compression Driver
• 3 x 10″ High Power Neodymium Woofers
• 45-20000 Hz linear Frequency Response
• Bass Motion Control and FiRPHASE processing
• 8 x M8 Rigging Points and 8 x Quick Lock

Acoustical

• Frequency Response : 45 Hz ÷ 20000 Hz
• Max SPL 1m : 135 dB
• Horizontal coverage angle : 100°
• Vertical coverage angle : 25°

Transducers

• Compression Driver : 1 x 1.4” neo, 3.0” v.c
• Woofer : 3 x 10” neo, 2.5” v.c

Input/Output Section

• Input signal : bal/unbal
• Input connectors : Combo XLR/Jack
• Output connectors : XLR
• Input sensitivity : +4 dBu/ -2 dBu

Processor Section

• Crossover Frequencies : 800
• Protections : Thermal, Excurs., RMS
• Limiter : Soft Limiter
• Controls : Linear, 2 Speakers, High-Pass, Volume

Power Section

• Total Power : 2100 W Peak
• High frequencies : 700 W Peak
• Low frequencies : 1400 W Peak
• Cooling : Convection
• Connections : Powercon TRUE1 TOP IN/OUT

Standard Compliance

• CE marking : Yes

Physical

• Cabinet/Case Material : Baltic birch plywood
• Hardware : 8 x M8, 8 x quick lock
• Handles : 2 side
• Pole mount/Cap : Yes
• Grille : Steel
• Color : Black

Size

• Height : 1080 mm / 42.52 inches
• Width : 297.5 mm / 11.71 inches
• Depth : 373 mm / 14.69 inches

Shipping Informations

• Package Height : 400 mm / 15.75 inches
• Package Width : 1115 mm / 43.9inches
• Package Depth : 327 mm / 12.87 inches
