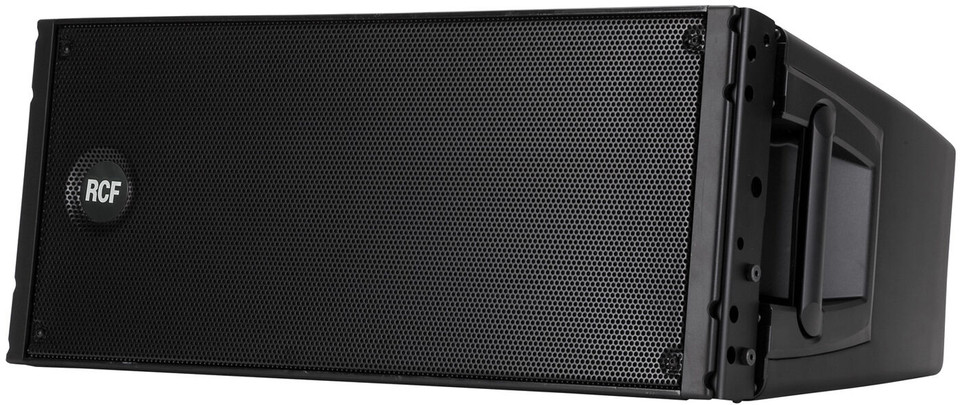

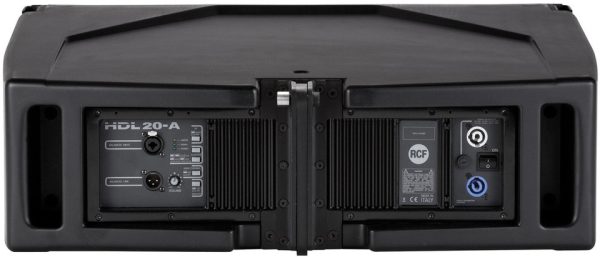

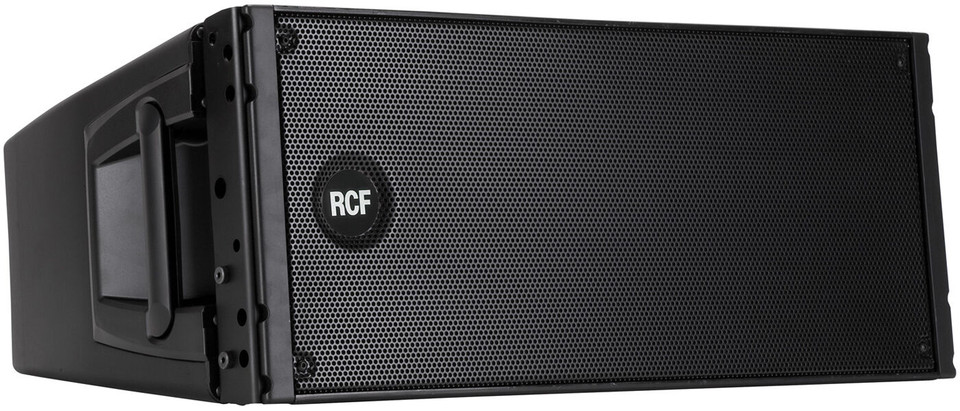

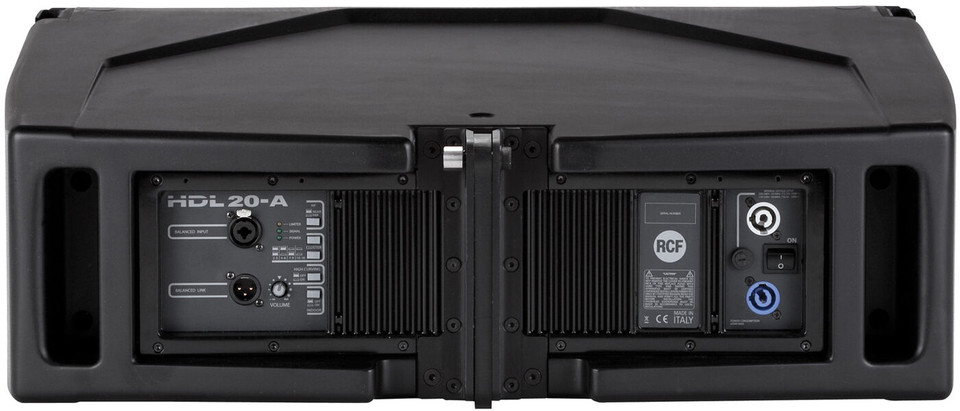

RCF HDL 20-A Dual 10 Active Two Way Line Array Speaker HDL20A HDL-20A Module
SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS
Frequency Response:
55 Hz ÷ 20000 Hz
Max SPL @ 1m:
135 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
15°
TRANSDUCERS
Compression Driver:
1 x 2.0”, 3.0” v.c
Woofer:
2 x 10”, 2.5” v.c
INPUT/OUTPUT SECTION
Input signal:
bal/unbal
Input connectors:
XLR
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu
PROCESSOR SECTION
Crossover Frequencies:
800 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Cluster, HF, High curving, Indoor
POWER SECTION
Total Power:
1400 W Peak, 700 W RMS
High frequencies:
400 W Peak, 200 W RMS
Low frequencies:
1000 W Peak, 500 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
PHYSICAL SPECIFICATIONS
Cabinet/Case Material:
PP Composite
Hardware:
Rigging flyware
Handles:
2 side, 2 back
Grille:
Steel
Color:
Black,
SIZE
Height:
294 mm / 11.57 inches
Width:
705 mm / 27.76 inches
Depth:
445 mm / 17.52 inches
Weight:
30.2 kg / 66.58 lbs
$500.00 $450.00
